Product Model

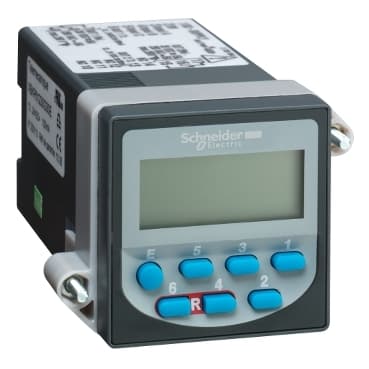

XBKP61230G30E
Selling Points
- 1The XBKP61230G30E offers bi-directional and uni-directional counting with frequencies up to 2500 Hz and 5000 Hz respectively.
- 2Equipped with a 6-digit LCD display, providing clear and precise readings in various environments.
- 3Features automatic and manual reset options, ensuring seamless operation in critical applications.
- 4Flush-mounted and panel mounting options make it easy to integrate into control panels, saving space.
- 5Built to withstand harsh industrial conditions with an IP65 rating, ensuring long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Zelio Count | Product or Component Type | Multifunctional counter |
Additional information | Batch counter<br />Preselection counter<br />Tachometer<br />Chronometer | Display Type | LCD |
Size | 48 x 48 mm | Display digits | 6 |
Counting frequency | bi-directional counting 2500 Hz<br /> uni-directional counting 5000 Hz | Reset | Manual<br />Automatic reset<br />Electrical reset |
Counting capacity | -99999...999999 | [Us] Rated Supply Voltage | 24 V DC Us +/- 10 % |
Current consumption | 150 mA 24 V DC | Output type | Relay changeover 5 ms 5...250 V AC, 0.01…1 A<br />Relay changeover 5 ms 5...30 V DC, 0.01…1 A<br />Transistor PNP 12...24 V DC, 0.01 A |
Preset number | 2 | Counting mode | Counting direction inputs 5 kOhm)<br />Differential inputs 5 kOhm)<br />Single counter input 5 kOhm)<br />Single counter with phase discriminator 5 kOhm)<br />Summing inputs 5 kOhm) |
Time range | 0...99 999.9 mn<br />0...99 999.9 s<br />0...99 h 59 mn 59 s<br />0...99 999.9 h | Input type | Contact |
Minimum pulse duration | 0.0001 s 5000 Hz<br />0.017 s 30 Hz | Mounting Mode | Flush-mounted |
Mounting Support | Panel mounting | Fixing Mode | By self-locking clamp with setscrews |
Connections - terminals | Screw terminal block | Discrete input type | NPN or PNP |
Height | 1.9 in (48 mm) | Number of outputs | 3 |
Net Weight | 0.33 lb(US) (0.15 kg) | Width | 1.9 in (48 mm) |
CAD overall width | 1.9 in (48 mm) | CAD overall height | 1.9 in (48 mm) |
CAD overall depth | 4.02 in (102 mm) | Standards | EN 61010<br />EN 50081-2<br />EN 50082-2 |
Product Certifications | cURus | IP degree of protection | IP65IEC 60529 |
Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) | Ambient Air Temperature for Storage | -4…158 °F (-20…70 °C) |
Vibration resistance | 1 gn 10…150 Hz)IEC 60068-2-6 | Shock resistance | 10 gn 18 ms IEC 60068-2-27 |
Electrical shock protection class | Class II IEC 60536 |
Specifications may be subject to change without notice
