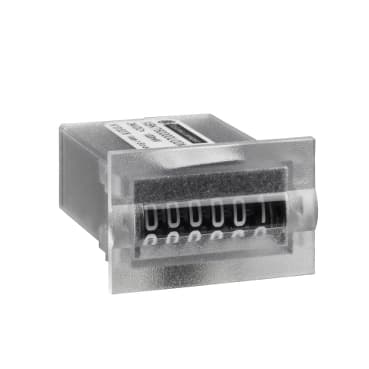

Product Model
XBKT60000U00M
Selling Points
- 1Mechanical 6-digit display for clear and precise counting.
- 224V DC supply with +/- 10% tolerance for reliable operation.
- 3Permanent backup time ensures continuous counting.
- 4Compact size (20 x 30 mm) for easy integration into panels.
- 5IP65 protection against dust and water, suitable for harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Zelio Count | Product or Component Type | Totalising counter |
Display Type | Mechanical | Size | 20 x 30 mm |
Display digits | 6 - 0.2 in (4 mm) | maximum counting frequency | 25 Hz |
Reset | Without | Counting capacity | 0...999 999 |
Technology Type | Electromechanical | [Us] rated supply voltage | 24 V DC Us +/- 10 % |
Power consumption in VA | 0.155 VA | Backup Time | Permanent |
Counting mode | Adding | input function | Counting |
Input type | Contact | Mechanical durability | 10000000 cycles |
Mounting Mode | Flush-mounted | Mounting Support | Panel mounting |
Connections - terminals | AMP lugs connection box) | Height | 0.8 in (20 mm) |
Net Weight | 0.07 lb(US) (0.03 kg) | Width | 1.2 in (30 mm) |
CAD overall width | 1.2 in (30 mm) | CAD overall height | 0.8 in (20 mm) |
CAD overall depth | 1.7 in (42 mm) | Standards | EN/IEC 50081-2<br />EN/IEC 50082-2 |
IP degree of protection | IP65EN/IEC 60529 | Ambient Air Temperature for Operation | 14…158 °F (-10…70 °C) |
Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Vibration resistance | 5 gn 10…150 Hz)EN/IEC 60068-2-6 |
Shock resistance | 30 gn 6 ms EN/IEC 60068-2-27 | Electrical shock protection class | Class II IEC 60536 |
Specifications may be subject to change without notice
