Product Model

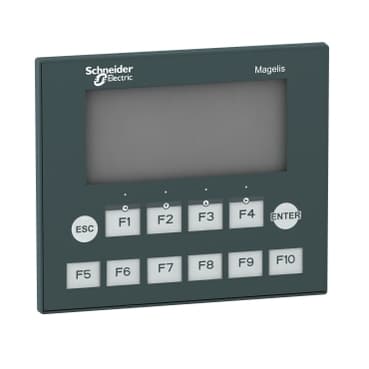

XBTRT500
Selling Points
- 1Compact design with a weight of 0.55 kg.
- 2High-resolution matrix screen with 198 x 80 pixels.
- 3Integrated keypad with 12 keys, including 10 customizable keys.
- 4Compatible with Modicon M340, Modicon TSX Micro, Twido, and Modicon Premium.
- 52-year warranty from Schneider Electric for enhanced reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Magelis XBTRT | Display Resolution | 198 x 80 pixels |
Software Type | Configuration software | Software Designation | Vijeo Designer Lite |
Operating System | Windows | Display Type | Extra-bright matrix backlit LCD |
Touch panel | Matrix | Touch sensitive zone | 11 x 5 cells |
Character font | Latin<br />Chinese (simplified Chinese)<br />Cyrillic<br />Katakana<br />Greek | Number of key | 12 |
Number of fixed keys | 2 | Number of customisable keys | 10 |
Number of pages | 256 alarm pages<br />200 application pages | Memory type | Flash |
Memory capacity | 512 KB | Integrated connection type | Serial link female RJ45, asynchronous RS232C/RS485)point-to-point |
Realtime clock | Access to the PLC real-time clock | Range Compatibility | Modicon M340<br />Modicon Premium<br />Twido<br />Modicon TSX Micro |
Product mounting | Flush mounting | Fixing mode | By 4 spring clips (1.5 to 6 mm thick panel) |
Display material | Polyester | Front material | PPT |
Keypad material | Polyester | marking | CE |
Height | 4.6 in (118 mm) | Width | 5.4 in (137 mm) |
Depth | 3.1 in (79 mm) | cut-out dimensions | 119.6 (+/- 0.5) x 105.2 (+/- 0.4) mm |
Net Weight | 1.21 lb(US) (0.55 kg) | Product or Component Type | Small panel with touchscreen and keypad |
Display colour | Green | display capacity | 10 lines of 33 characters maximum<br />2 lines of 5 characters minimum<br />Graphic objects (bargraph, button, light...) |
[Us] rated supply voltage | 5 V DC | Supply | From PLC (terminal port) |
Downloadable protocols | Third party protocols<br />Uni-TE<br />Modbus | Standards | IEC 61131-2<br />CSA C22.2 No 14<br />IEC 60068-2-27<br />UL 508<br />IEC 60068-2-6 |
Product Certifications | UL 1604<br />ATEX zone 2/22<br />CSA Class 1 Division 2<br />UL Class 1 Division 2 | Ambient Air Temperature for Operation | 32…131 °F (0…55 °C) |
Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) | Relative humidity | 0…85 % without condensation |
IP degree of protection | IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel) | NEMA degree of protection | NEMA 4X front panel indoor use) |
Shock resistance | 15 gn 11 ms IEC 60068-2-27 | Vibration resistance | +/- 3.5 mm 2…8.45 Hz)IEC 60068-2-6<br />1 gn 8.45…150 Hz)IEC 60068-2-6 |
Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
Specifications may be subject to change without notice
