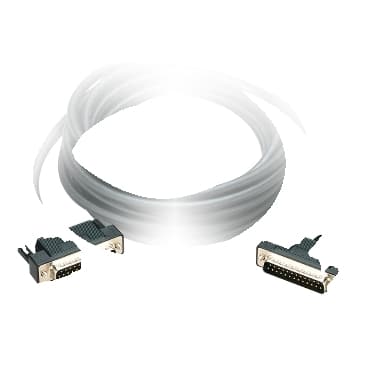

Product Model
XBTZ9720
Selling Points
- 1Built with durable materials for reliable performance in industrial settings.
- 2For direct connection to Schneider Electric's Magelis XBT terminals, ensuring seamless integration.
- 3Features 2 male SUB-D 25 connectors, compatible with various industrial protocols like DF1 and RS232.
- 4Offers a convenient 2.5m cable length, providing ample connectivity without cluttering the workspace.
- 5Meets RoHS compliance standards, ensuring environmental safety and regulatory adherence.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XBT | accessory / separate part category | Connection accessories |
accessory / separate part type | Connecting cable | Accessory / separate part designation | Direct connection cable |
Accessory / separate part destination | XBT terminal | Cable length | 8.2 ft (2.5 m) |
Product Compatibility | XBTR411<br />XBTN410<br />XBTNU400<br />XBTN401<br />XBTR410 | Range Compatibility | Harmony HMI GTO<br />Allen-Bradley PLC5 |
Electrical connection | 2 male connectors SUB-D 25 | communication port protocol | DF1 |
Physical interface | RS232 | Net Weight | 0.46 lb(US) (0.21 kg) |
Specifications may be subject to change without notice
