Product Model

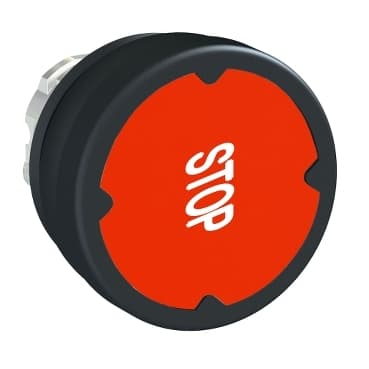

ZB4BC48007RA
Selling Points
- 1Designed to withstand harsh conditions, including high impact and vibrations.
- 2Offers robust protection against dust, water, and other environmental factors.
- 3Durable and corrosion-resistant metal construction for long-lasting performance.
- 4Ergonomic design with a spring return mechanism for smooth operation.
- 5Compatible with temperatures from -40°C to 70°C, ensuring versatility in various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for push-button |
Device short name | ZB4 | Bezel material | Chromium plated metal |
Head type | Standard | Mounting diameter | 0.9 in (22 mm) |
Sale per indivisible quantity | 1 | CAD overall width | 1.5 in (37 mm) |
CAD overall height | 0.7 in (18.5 mm) | CAD overall depth | 1.5 in (37 mm) |
Net Weight | 0.079 lb(US) (0.036 kg) | Electrical shock protection class | Class I IEC 61140 |
Shape of signaling unit head | Round | Type of operator | spring return |
Operator profile | Red flush, type H007 white) | Operator additional information | Horizontal mounting |
Mechanical durability | 3000000 cycles | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 | Main group | Harsh environment |
Group of product | Flush marked type H007 | Marking | Type H007 |
Colour of marking | White | Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting |
Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
IP degree of protection | IP66 IEC 60529<br />IP69K<br />IP69 | NEMA degree of protection | NEMA 4 UL 508<br />NEMA 13<br />NEMA 12 |
Resistance to high pressure washer | 0.01 psi (90 Pa) 180 °F (82.5 °C) | IK degree of protection | IK06 conforming to IEC 62262 |
Standards | UL 508<br />CSA C22.2<br />IEC 60947-1<br />IEC 60947-5-1 | Product Certifications | CSA<br />CE<br />UL |
Specifications may be subject to change without notice
