Product Model

ZB4BC5

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

37490

In Stock
Last updated: 2025/4/27
View Specifications

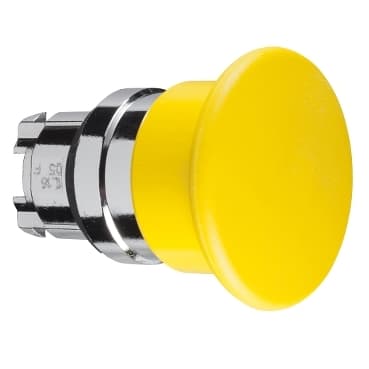

schneider ZB4BC5

Selling Points

  • 1High Mechanical Durability: 5 million cycles mechanical durability ensures long-lasting performance.
  • 2Robust Shock Resistance: Withstands 30 to 50 g shock resistance, perfect for harsh environments.
  • 3Dust and Water Resistant: IP66 rating for dust and water resistance, ideal for outdoor or industrial use.
  • 4Ergonomic Design: 40 mm round signaling unit head with a prominent mushroom shape for easy visibility.
  • 5Wide Operating Temperature Range: Operates from -40°C to 70°C, suitable for various applications.
Product Details
ZB4BC5
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for non-illuminated push-button
Device short name
ZB4
Bezel material
Chromium plated metal
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Head type
Standard
Shape of signaling unit head
Round
Type of operator
spring return
Operator profile
Yellow mushroom Ø 40 mm, unmarked
cap/operator or lens colour
Yellow
CAD overall width
1.6 in (40 mm)
CAD overall height
1.6 in (40 mm)
CAD overall depth
2.05 in (52 mm)
Mechanical durability
5000000 cycles
Electrical composition code
C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class I IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK06 conforming to IEC 50102
Standards
UL 508<br />EN/IEC 60947-5-5<br />CSA C22.2 No 14<br />EN/IEC 60947-5-4<br />EN/IEC 60947-5-1<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />JIS C8201-1
Product Certifications
BV<br />CSA<br />DNV<br />LROS (Lloyds register of shipping)<br />UL Listed
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
