Product Model

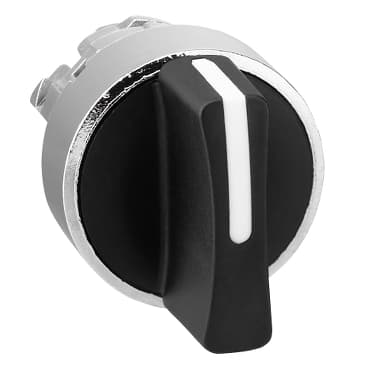

ZB4BD7
Selling Points
- 1Made with chromium-plated metal for durability and resistance to corrosion.
- 2Compatible with NEMA 1/2/3/4/4X/13/IP65/IP66 enclosures for versatile mounting options.
- 3Features a spring return from left to center mechanism for smooth operation.
- 4Designed to meet the robustness and performance requirements of industrial applications.
- 5Available in a round shape with a black standard handle, perfect for panel mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for selector switch |
Device short name | ZB4 | Bezel material | Chromium plated metal |
Mounting diameter | 0.9 in (22.5 mm) | Head type | Standard |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
Type of operator | Left to centre spring return | Operator profile | Black standard handle |
Operator position information | 3 positions +/- 45° | cap/operator or lens colour | Black |
CAD overall width | 1.1 in (29 mm) | CAD overall height | 1.1 in (29 mm) |
CAD overall depth | 1.7 in (44 mm) | Net Weight | 0.09 lb(US) (0.04 kg) |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Mechanical durability | 1000000 cycles |
Electrical composition code | C3 6 single front mounting<br />C4 6 single and double front mounting<br />C5 5 single front mounting<br />C6 5 single and double front mounting<br />C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting | Device presentation | Basic element |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class I IEC 60536 |
IP degree of protection | IP67 IEC 60529<br />IP69<br />IP69K | NEMA degree of protection | NEMA 13<br />NEMA 4X |
IK degree of protection | IK06 conforming to IEC 50102 | Standards | UL 508<br />JIS C8201-5-1<br />IEC 60947-1<br />IEC 60947-5-4<br />CSA C22.2 No 14<br />IEC 60947-5-1<br />IEC 60947-5-5<br />JIS C8201-1 |
Product Certifications | BV<br />CSA<br />DNV<br />LROS (Lloyds register of shipping)<br />UL Listed | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
