Product Model

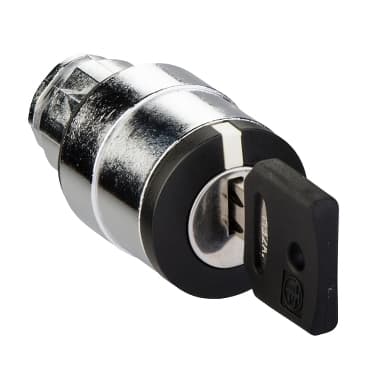

ZB4BG2K1132A
Selling Points
- 1Designed for high-pressure washers up to 1015.26 psi (7000000 Pa) at 131 °F (55 °C).
- 2Withstands 1,000,000 cycles and operates in temperatures from -40 to 158 °F (-40 to 70 °C).
- 3Ensures reliable performance in harsh environments.
- 4Provides secure operation with a special key lock mechanism.
- 5Part of the Harmony XB4 series, ensuring seamless integration with other components.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for key selector switch |
Device short name | ZB4 | Mounting diameter | 0.9 in (22 mm) |
Head type | Standard | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Operator profile | key switch |
Operator position information | 2 positions 90° | Type of Keylock | Special key |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Mechanical durability | 1000000 cycles |
Device presentation | Basic element | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Overvoltage category | Class I IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K |
NEMA degree of protection | NEMA 13 | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
