schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB4BH04837

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

37862

In Stock
Last updated: 2025/4/27
View Specifications

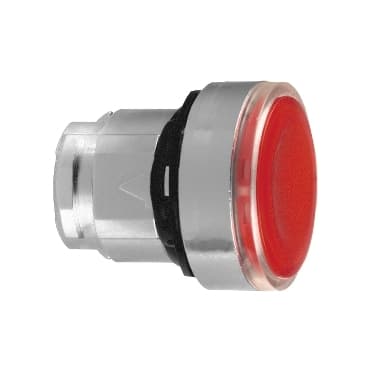

schneider ZB4BH04837

Selling Points

  • 1Designed with a chromium-plated metal bezel, ensuring durability in harsh environments.
  • 2Operates with a latched push-push mechanism, providing a clear and easy-to-use interface.
  • 3Compatible with temperatures from -40°C to 70°C, making it suitable for various industrial settings.
  • 4Resistant to dust, water, and high pressure washers, ensuring reliable operation in challenging conditions.
  • 5Features a snap-fit assembly for quick installation and replacement on compatible push button units and contact blocks.
Product Details
ZB4BH04837
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for illuminated push-button
Product Compatibility
Integral LED
Device short name
ZB4
Bezel material
Black metal
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
push-push
Operator profile
Red flush, unmarked
Operator additional information
For insertion of legend
CAD overall width
1.1 in (29 mm)
CAD overall height
1.1 in (29 mm)
CAD overall depth
1.2 in (30 mm)
Net Weight
0.057 lb(US) (0.026 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability
500000 cycles
Electrical composition code
M5 2 single front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Electrical shock protection class
Class I IEC 60536
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class I IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK06 conforming to IEC 50102
Standards
EN/IEC 60947-5-5<br />EN/IEC 60947-5-1<br />UL 508<br />EN/IEC 60947-5-4<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />EN/IEC 60947-1<br />JIS C8201-1
Product Certifications
BV<br />UL Listed<br />LROS (Lloyds register of shipping)<br />DNV<br />GL<br />CSA
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
