ZB4BH137

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

37797

In Stock
Last updated: 2025/4/27
View Specifications

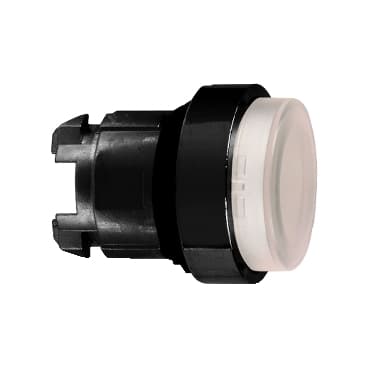

schneider ZB4BH137

Selling Points

  • 1High-Quality Illumination: Features an integral LED for bright and reliable illumination.
  • 2Durable Construction: Made from chromium-plated metal for long-lasting performance.
  • 3Water and Dust Resistant: IP67 rating ensures protection against water and dust.
  • 4Impact Resistant: Designed to withstand impacts and vibrations.
  • 5Universal Compatibility: Suitable for various control and signaling applications.
Product Details
ZB4BH137
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for illuminated push-button
Product Compatibility
Integral LED
Device short name
ZB4
Bezel material
Black metal
Head type
Standard
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
push-push
Operator profile
White projecting, unmarked
CAD overall width
1.1 in (29 mm)
CAD overall height
1.1 in (29 mm)
CAD overall depth
1.3 in (33 mm)
Net Weight
0.057 lb(US) (0.026 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability
500000 cycles
Electrical composition code
M5 2 single front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Electrical shock protection class
Class I IEC 60536
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class I IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK05 conforming to IEC 50102
Standards
UL 508<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-5<br />EN/IEC 60947-1<br />EN/IEC 60947-5-4<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />JIS C8201-1
Product Certifications
UL Listed<br />GL<br />CSA<br />BV<br />DNV<br />LROS (Lloyds register of shipping)
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
