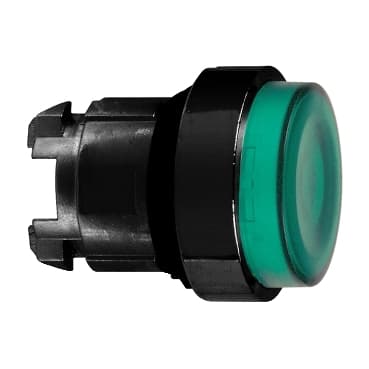

schneider ZB4BH337

Selling Points

  • 1Green Illuminated Design: The ZB4BH337 features a green illuminated pushbutton head for clear visibility.
  • 2Robust Metal Construction: Made from high-quality metal, ensuring durability and reliability.
  • 3High IP Rating: Designed with an IP66 rating for protection against dust and water, suitable for harsh environments.
  • 4Spring Return Mechanism: Equipped with a spring return mechanism for smooth and consistent operation.
  • 5Easy Installation: Simple mounting with a snap-fit head and body design, requiring only a single screw for secure installation.
Product Details
ZB4BH337
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for illuminated push-button
Product Compatibility
Integral LED
Device short name
ZB4
Bezel material
Black metal
Head type
Standard
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
push-push
Operator profile
Green projecting, unmarked
CAD overall width
1.1 in (29 mm)
CAD overall height
1.1 in (29 mm)
CAD overall depth
1.3 in (33 mm)
Net Weight
0.057 lb(US) (0.026 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability
500000 cycles
Electrical composition code
M5 2 single front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Electrical shock protection class
Class I IEC 60536
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class I IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK05 conforming to IEC 50102
Standards
EN/IEC 60947-5-1<br />EN/IEC 60947-1<br />UL 508<br />JIS C8201-5-1<br />EN/IEC 60947-5-4<br />EN/IEC 60947-5-5<br />CSA C22.2 No 14<br />JIS C8201-1
Product Certifications
CSA<br />UL Listed<br />GL<br />LROS (Lloyds register of shipping)<br />DNV<br />BV
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
