Product Model

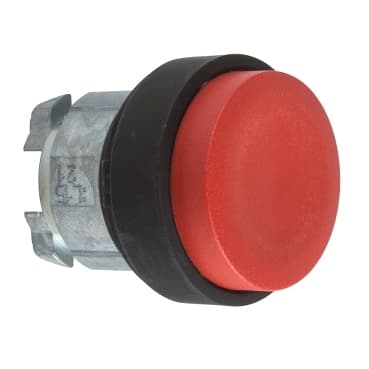

ZB4BH47
Selling Points
- 1High Mechanical Durability: Withstands 10,000,000 cycles.
- 2Spring Return/Impulse Mechanism: Ensures reliable operation.
- 3Black Anodized Metal Bezel: Durable and resistant to corrosion.
- 4Non-Illuminated Design: Simple and unobtrusive in any setting.
- 5Universal Compatibility: Suitable for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for non-illuminated push-button |
Device short name | ZB4 | Bezel material | Black metal |
Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
Head type | Standard | Shape of signaling unit head | Round |
Type of operator | push-push | Operator profile | Red projecting, unmarked |
CAD overall width | 1.1 in (29 mm) | CAD overall height | 1.1 in (29 mm) |
CAD overall depth | 1.3 in (33 mm) | Mechanical durability | 5000000 cycles |
Electrical composition code | C11 3 single front mounting | Device presentation | Basic element |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class I IEC 60536 |
IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K | NEMA degree of protection | NEMA 13 |
IK degree of protection | IK06 conforming to IEC 50102 | Standards | EN/IEC 60947-5-5<br />JIS C8201-5-1<br />UL 508<br />EN/IEC 60947-1<br />EN/IEC 60947-5-4<br />CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />JIS C8201-1 |
Product Certifications | UL Listed<br />GL<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />CSA | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
