Product Model

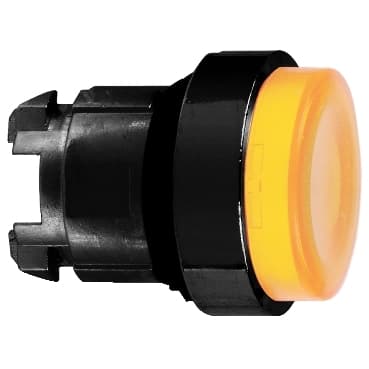

ZB4BH537
Selling Points
- 1Designed for harsh environments with IP66 protection against dust, water, and vibration.
- 2Extended illuminated projecting push/push mechanism for clear visibility.
- 3Chromium-plated metal bezel for long-lasting performance.
- 4Compatible with various connection types including screw clamp, connector, Faston connector, and printed circuit board.
- 5Quick and easy assembly and disassembly for seamless integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for illuminated push-button |
Product Compatibility | Integral LED | Device short name | ZB4 |
Bezel material | Black metal | Mounting diameter | 0.9 in (22 mm) |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
Type of operator | push-push | Operator profile | Orange projecting, unmarked |
CAD overall width | 1.1 in (29 mm) | CAD overall height | 1.1 in (29 mm) |
CAD overall depth | 1.3 in (33 mm) | Net Weight | 0.057 lb(US) (0.026 kg) |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Mechanical durability | 500000 cycles |
Electrical composition code | M5 2 single front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED | Device presentation | Basic element |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Electrical shock protection class | Class I IEC 60536 | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Overvoltage category | Class I IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP69<br />IP69K |
NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK05 conforming to IEC 50102 |
Standards | UL 508<br />EN/IEC 60947-5-5<br />EN/IEC 60947-1<br />EN/IEC 60947-5-1<br />JIS C8201-5-1<br />EN/IEC 60947-5-4<br />CSA C22.2 No 14<br />JIS C8201-1 | Product Certifications | UL Listed<br />BV<br />CSA<br />LROS (Lloyds register of shipping)<br />GL<br />DNV |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
