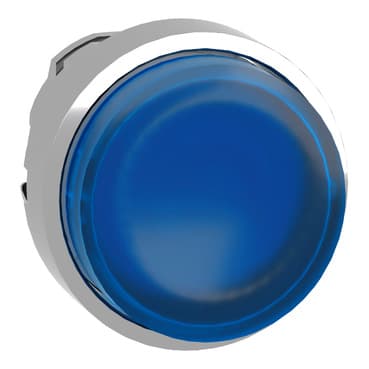

schneider ZB4BH63

Selling Points

  • 1Extended Illumination: The ZB4BH63 features an illuminated projecting push/push mechanism for enhanced visibility.
  • 2Durable Design: Constructed from high-quality chromium-plated metal, ensuring long-lasting performance.
  • 3Harsh Environment Ready: IP66 and IP69K ratings make it suitable for use in demanding environments.
  • 4Universal LED Compatibility: Compatible with universal LED blocks for easy integration.
  • 5Easy Assembly & Disassembly: Quick and easy assembly and disassembly for convenient maintenance.
Product Details
ZB4BH63
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for illuminated push-button
Product Compatibility
Universal LED
Device short name
ZB4
Bezel material
Chromium plated metal
Head type
Standard
Mounting diameter
0.9 in (22.5 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
push-push
Operator profile
Blue projecting, unmarked
cap/operator or lens colour
Blue
CAD overall width
1.1 in (29 mm)
CAD overall height
1.1 in (29 mm)
CAD overall depth
1.3 in (33 mm)
Net Weight
0.057 lb(US) (0.026 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability
500000 cycles
Electrical composition code
M5 2 single front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Electrical shock protection class
Class I IEC 60536
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class I IEC 60536
IP degree of protection
IP69<br />IP69K<br />IP67 IEC 60529
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK05 conforming to IEC 50102
Standards
IEC 60947-1<br />UL 508<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />IEC 60947-5-5<br />IEC 60947-5-1<br />IEC 60947-5-4<br />JIS C8201-1
Product Certifications
CSA<br />LROS (Lloyds register of shipping)<br />BV<br />UL Listed<br />DNV
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
