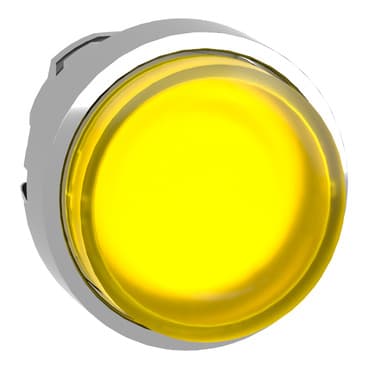

Product Model
ZB4BH83
Selling Points
- 1High-Impact Resistance: Designed with a chromium-plated metal bezel for superior durability and resistance to high impact.
- 2Vibration-Resistant: Built to withstand harsh environments with a robust design and high vibration resistance.
- 3Universal LED Compatibility: Compatible with universal LED blocks, ensuring seamless integration into various systems.
- 4Easy Assembly & Disassembly: Quick and easy assembly and disassembly for efficient installation and maintenance.
- 5IP69K Protection: Offers IP69K protection, ensuring the device remains functional even under extreme conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for illuminated push-button |
Product Compatibility | Universal LED | Device short name | ZB4 |
Bezel material | Chromium plated metal | Mounting diameter | 0.9 in (22.5 mm) |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
Type of operator | push-push | Operator profile | Yellow projecting, unmarked |
cap/operator or lens colour | Yellow | CAD overall width | 1.1 in (29 mm) |
CAD overall height | 1.1 in (29 mm) | CAD overall depth | 1.3 in (33 mm) |
Net Weight | 0.057 lb(US) (0.026 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
Mechanical durability | 500000 cycles | Electrical composition code | M5 2 single front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED |
Device presentation | Basic element | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Overvoltage category | Class I IEC 60536 | IP degree of protection | IP69<br />IP69K<br />IP67 IEC 60529 |
NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK05 conforming to IEC 50102 |
Standards | IEC 60947-5-4<br />IEC 60947-5-5<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />IEC 60947-5-1<br />UL 508<br />IEC 60947-1<br />JIS C8201-1 | Product Certifications | CSA<br />LROS (Lloyds register of shipping)<br />BV<br />UL Listed<br />DNV |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
