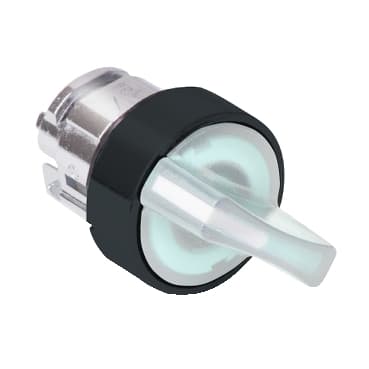

schneider ZB4BK14137

Selling Points

  • 1White Illumination: The switch head is illuminated with a white LED for enhanced visibility.
  • 22-Position Spring Return: Operates with a spring return mechanism, ensuring smooth and reliable operation.
  • 3Standard Handle: Compatible with standard handles for easy integration into various systems.
  • 4IP66 Rating: Designed with an IP66 rating for protection against dust and water ingress.
  • 5Harmony XB4 Series: Part of the Harmony XB4 series from Schneider Electric, known for its quality and reliability.
Product Details
ZB4BK14137
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for illuminated selector switch
Product Compatibility
Integral LED
Device short name
ZB4
Bezel material
Black metal
Head type
Standard
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
Right to left spring return
Operator profile
White standard handle
Operator position information
2 positions 90°
CAD overall width
1.1 in (29 mm)
CAD overall height
1.1 in (29 mm)
CAD overall depth
1.7 in (43 mm)
Net Weight
0.082 lb(US) (0.037 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability
500000 cycles
Electrical composition code
M3 4 single front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />M4 4 single and double front mounting integral LED
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class I IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK04 conforming to IEC 50102
Standards
EN/IEC 60947-5-4<br />EN/IEC 60947-5-1<br />JIS C8201-5-1<br />EN/IEC 60947-1<br />EN/IEC 60947-5-5<br />CSA C22.2 No 14<br />UL 508<br />JIS C8201-1
Product Certifications
BV<br />LROS (Lloyds register of shipping)<br />UL Listed<br />GL<br />CSA<br />DNV
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
