Product Model
ZB4BK14337
Selling Points

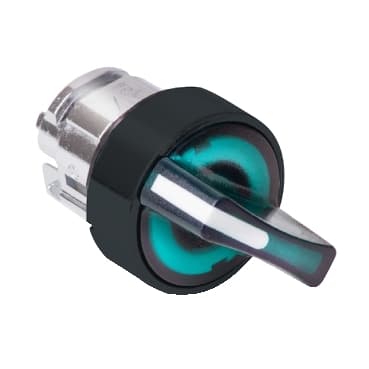

- 1High-quality illumination: The ZB4BK14337 features a green Ø22 mm illuminated selector switch head, ensuring clear visibility in various environments.
- 2Spring return mechanism: Equipped with a 2-position spring return mechanism, this switch head provides reliable and consistent operation.
- 3Compact design: The round shape of the signaling unit head makes it perfect for space-constrained applications.
- 4Durable construction: Built to withstand the demands of industrial settings, this switch head is designed for long-lasting performance.
- 5Compliance with industry standards: Meets or exceeds industry standards for electrical components, ensuring safe and efficient operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for illuminated selector switch |
Product Compatibility | Integral LED | Device short name | ZB4 |
Bezel material | Black metal | Mounting diameter | 0.9 in (22 mm) |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
Type of operator | Right to left spring return | Operator profile | Green standard handle |
Operator position information | 2 positions 90° | CAD overall width | 1.1 in (29 mm) |
CAD overall height | 1.1 in (29 mm) | CAD overall depth | 1.7 in (43 mm) |
Net Weight | 0.082 lb(US) (0.037 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
Mechanical durability | 500000 cycles | Electrical composition code | M3 4 single front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />M4 4 single and double front mounting integral LED |
Device presentation | Basic element | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Overvoltage category | Class I IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K |
NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK04 conforming to IEC 50102 |
Standards | JIS C8201-5-1<br />UL 508<br />EN/IEC 60947-5-4<br />EN/IEC 60947-1<br />EN/IEC 60947-5-5<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C8201-1 | Product Certifications | GL<br />BV<br />CSA<br />UL Listed<br />DNV<br />LROS (Lloyds register of shipping) |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
