Product Model

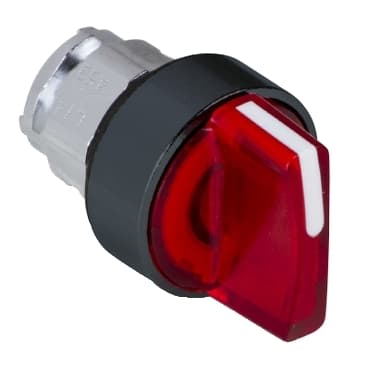

ZB4BK15437
Selling Points
- 1Designed with robust components for consistent performance.
- 2Ensures safe and reliable power supply to industrial systems.
- 3Easy integration with existing infrastructure using modular enclosures like Kaedra or Pragma.
- 4Compatible with Schneider Electric's ION and PowerView solutions for real-time system monitoring.
- 5Suitable for various industrial applications worldwide, ensuring seamless integration and operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for illuminated selector switch |
Product Compatibility | Integral LED | Device short name | ZB4 |
Bezel material | Black metal | Head type | Standard |
Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Type of operator | To centre spring return |
Operator profile | Red standard handle | Operator position information | 3 positions +/- 45° |
CAD overall width | 1.1 in (29 mm) | CAD overall height | 1.1 in (29 mm) |
CAD overall depth | 1.7 in (43 mm) | Net Weight | 0.079 lb(US) (0.036 kg) |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Mechanical durability | 500000 cycles |
Electrical composition code | M3 4 single front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />M4 4 single and double front mounting integral LED | Device presentation | Basic element |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class I IEC 60536 |
IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K | NEMA degree of protection | NEMA 13<br />NEMA 4X |
IK degree of protection | IK04 conforming to IEC 50102 | Standards | EN/IEC 60947-5-1<br />EN/IEC 60947-5-4<br />EN/IEC 60947-1<br />UL 508<br />JIS C8201-5-1<br />EN/IEC 60947-5-5<br />CSA C22.2 No 14<br />JIS C8201-1 |
Product Certifications | LROS (Lloyds register of shipping)<br />UL Listed<br />GL<br />DNV<br />CSA<br />BV | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
