Product Model

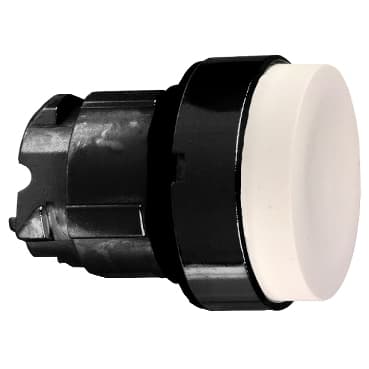

ZB4BL17
Selling Points
- 1Built with chromed zinc for durability and resistance to corrosion.
- 2Ideal for applications where lighting is not required, ensuring a sleek and functional design.
- 3Designed for momentary operation, providing quick and efficient control.
- 4Meets NEMA 1/2/3/4/4X/13 and IP66 standards for reliability and protection.
- 5Compliant with UL and CSA regulations, ensuring safety and reliability in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for non-illuminated push-button |
Device short name | ZB4 | Bezel material | Black metal |
Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Type of operator | spring return |
Operator profile | White projecting, unmarked | CAD overall width | 1.1 in (29 mm) |
CAD overall height | 1.1 in (29 mm) | CAD overall depth | 1.3 in (33 mm) |
Mechanical durability | 10000000 cycles | Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting |
Device presentation | Basic element | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Overvoltage category | Class I IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K |
NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK06 conforming to IEC 50102 |
Standards | EN/IEC 60947-1<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />UL 508<br />EN/IEC 60947-5-5<br />EN/IEC 60947-5-4<br />JIS C8201-5-1<br />JIS C8201-1 | Product Certifications | GL<br />BV<br />UL Listed<br />CSA<br />LROS (Lloyds register of shipping)<br />DNV |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
