ZB4BL2347

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

23724

In Stock
Last updated: 2025/4/17
View Specifications

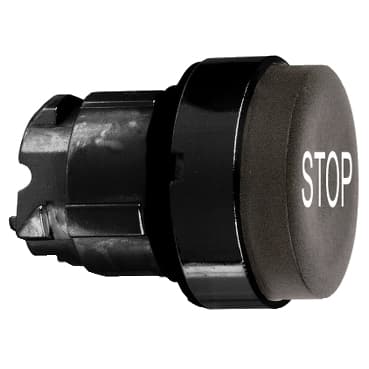

schneider ZB4BL2347

Selling Points

  • 1High Performance in Demanding Environments: Designed to operate effectively in harsh conditions, ensuring reliability and efficiency.
  • 2Versatile Mounting Options: Compatible with various mounting systems, including screw clamp terminals and plug-in connectors.
  • 3Mechanical Durability: Withstands up to 10 million cycles, providing long-lasting performance.
  • 4IP66 and IK06 Protection: Offers robust protection against dust and water, as well as impact resistance.
  • 5Comprehensive Product Certifications: Meets international standards including EN/IEC 60947-1 and CSA C22.2 No 14.
Product Details
ZB4BL2347
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for non-illuminated push-button
Device short name
ZB4
Bezel material
Black metal
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
spring return
Operator profile
Black projecting, STOP white)
CAD overall width
1.1 in (29 mm)
CAD overall height
1.1 in (29 mm)
CAD overall depth
1.3 in (33 mm)
Mechanical durability
10000000 cycles
Electrical composition code
C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class I IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK06 conforming to IEC 50102
Standards
EN/IEC 60947-5-1<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />UL 508<br />EN/IEC 60947-5-5<br />EN/IEC 60947-5-4<br />JIS C8201-1
Product Certifications
BV<br />UL Listed<br />LROS (Lloyds register of shipping)<br />CSA<br />DNV<br />GL
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
