Product Model

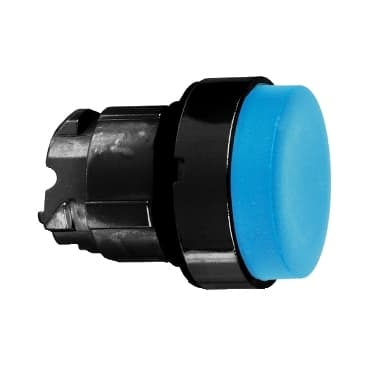

ZB4BL67
Selling Points
- 1High-Quality Design: Crafted with chromium plated metal for durability and reliability.
- 2Non-Illuminated Operation: Perfect for applications where lighting is not required.
- 3Spring Return Mechanism: Ensures consistent operation with a smooth return action.
- 4Blue Projecting Design: Visually distinct with its blue projecting head for easy identification.
- 5Industrial Automation Ready: Designed to meet the demands of industrial control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for non-illuminated push-button |
Device short name | ZB4 | Bezel material | Black metal |
Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
Head type | Standard | Shape of signaling unit head | Round |
Type of operator | spring return | Operator profile | Blue projecting, unmarked |
CAD overall width | 1.1 in (29 mm) | CAD overall height | 1.1 in (29 mm) |
CAD overall depth | 1.3 in (33 mm) | Mechanical durability | 10000000 cycles |
Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting | Device presentation | Basic element |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class I IEC 60536 |
IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K | NEMA degree of protection | NEMA 13<br />NEMA 4X |
IK degree of protection | IK06 conforming to IEC 50102 | Standards | EN/IEC 60947-5-1<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-1<br />UL 508<br />EN/IEC 60947-5-4<br />EN/IEC 60947-5-5<br />JIS C8201-1 |
Product Certifications | LROS (Lloyds register of shipping)<br />UL Listed<br />CSA<br />DNV<br />GL<br />BV | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
