Product Model

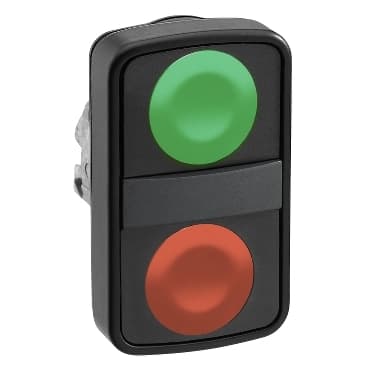

ZB4BL73407
Selling Points
- 1Versatile Double-Headed Design: Features one green and one red button for clear indication.
- 222mm Mounting Diameter: Easy to install with Ø22mm mounting holes.
- 3IP66 Rating: Durable and resistant to dust and water.
- 4Spring Return Mechanism: Provides smooth and reliable operation.
- 5Harmony XB4 Series: Part of Schneider Electric's robust Harmony XB4 series for industrial use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for double-headed push-button |
Device short name | ZB4 | Bezel material | Black metal |
Mounting diameter | 0.9 in (22 mm) | Head type | Standard |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Rectangular |
Type of operator | spring return | Operator profile | Green flush, unmarked<br />Red projecting, unmarked |
Operators description | Green unmarked - red unmarked | Net Weight | 0.123 lb(US) (0.056 kg) |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Colour of marking | White marking when green, red or black caps<br />Black marking when white caps |
Mechanical durability | 1000000 cycles | Electrical composition code | C3 6 single front mounting<br />C4 6 single and double front mounting<br />C14 2 single front mounting |
Device presentation | Basic element | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Electrical shock protection class | Class I IEC 60536 |
IP degree of protection | IP69 IEC 60529<br />IP66 IEC 60529<br />IP69K | NEMA degree of protection | NEMA 13<br />NEMA 4X |
IK degree of protection | IK03 conforming to IEC 50102 | Standards | IEC 60947-5-1<br />UL 508<br />IEC 60947-1<br />CSA C22.2 No 14<br />IEC 60947-5-5<br />IEC 60947-5-4<br />JIS C8201-5-1<br />JIS C8201-1 |
Product Certifications | GL<br />CSA<br />UL Listed<br />DNV<br />BV<br />LROS (Lloyds register of shipping) | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
