schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB4BL9412

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

23801

In Stock
Last updated: 2025/4/18
View Specifications

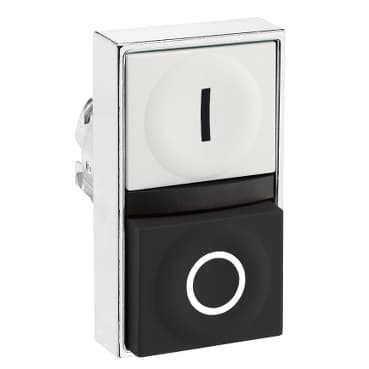

schneider ZB4BL9412

Selling Points

  • 1High Durability: Designed to withstand 200,000 operating cycles.
  • 2IP66 Protection: Ensures robust performance in harsh environments.
  • 3Compliance with IEC Standards: Meets IEC 60068-2-6 and IEC 60529 for shock and vibration resistance.
  • 4Reliable Operation: Conforms to IEC 60947-1 for electrical insulation and rated impulse withstand voltage.
  • 5Versatile Mounting Options: Suitable for various mounting positions, including front mounting with single and double blocks.
Product Details
ZB4BL9412
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for double-headed push-button
Device short name
ZB4
Bezel material
Chromium plated metal
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Rectangular
Type of operator
spring return
Operator profile
White flush, I black)<br />Black projecting, O white)
Operators description
White ''I'' - black ''O''
CAD overall width
1.2 in (30 mm)
CAD overall height
2.0 in (50 mm)
CAD overall depth
1.4 in (35 mm)
Net Weight
0.112 lb(US) (0.051 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Colour of marking
White marking when green, red or black caps<br />Black marking when white caps
Mechanical durability
1000000 cycles
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Electrical shock protection class
Class I IEC 60536
IP degree of protection
IP66 IEC 60529
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK03 conforming to IEC 50102
Standards
EN/IEC 60947-5-1<br />EN/IEC 60947-1<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />EN/IEC 60947-5-5<br />EN/IEC 60947-5-4<br />UL 508<br />JIS C8201-1
Product Certifications
CSA<br />LROS (Lloyds register of shipping)<br />GL<br />UL Listed<br />BV<br />DNV
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
