Product Model

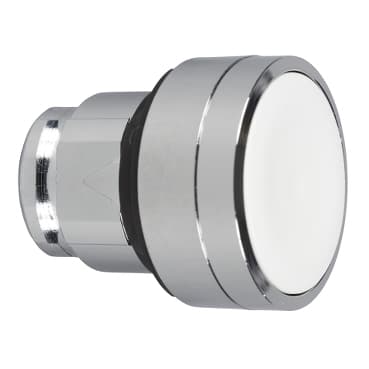

ZB4BP183
Selling Points
- 1Robust and Reliable Design: Built to withstand harsh environments with an IP66 rating.
- 2Easy Installation: Quick and easy assembly and disassembly for seamless integration.
- 3Ergonomic Interface: Clear membrane silicone boot provides an ergonomic interface for controlling machines.
- 4Mechanical Shock Resistance: Excellent resistance to mechanical shock and vibration.
- 5Versatile Connectivity Options: Compatible with various connection types including screw clamp, connector, Faston connector, spring terminal, or printed circuit board.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for non-illuminated push-button |
Device short name | ZB4 | Product compatibility | legend holder |
Bezel material | Chromium plated metal | Mounting diameter | 0.9 in (22.5 mm) |
Sale per indivisible quantity | 1 | Head type | Standard |
Shape of signaling unit head | Round | Type of operator | spring return |
Operator profile | White flush, unmarked | Operator additional information | Clear membrane for insertion of protected legend within head |
cap/operator or lens colour | White | CAD overall width | 1.2 in (30 mm) |
CAD overall height | 1.2 in (30 mm) | CAD overall depth | 1.3 in (32 mm) |
Mechanical durability | 10000000 cycles | Electrical composition code | C3 6 single front mounting<br />C4 6 single and double front mounting<br />C14 2 single front mounting |
Device presentation | Basic element | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Overvoltage category | Class I IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K |
NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK06 conforming to IEC 50102 |
Standards | IEC 60947-5-5<br />UL 508<br />IEC 60947-1<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />IEC 60947-5-1<br />IEC 60947-5-4<br />JIS C8201-1 | Product Certifications | BV<br />CSA<br />DNV<br />LROS (Lloyds register of shipping)<br />UL Listed |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
