Product Model

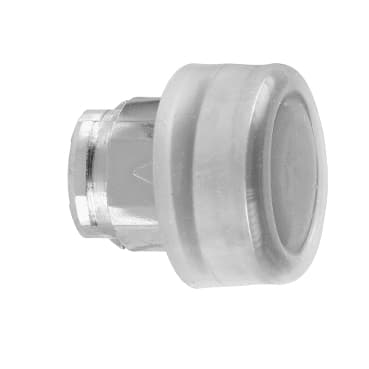

ZB4BP2TQ
Selling Points
- 1Withstands up to 5 million cycles, ensuring long-lasting performance.
- 2Constructed from chromed metal for enhanced strength and corrosion resistance.
- 3Designed for heavy-duty use in various industrial settings.
- 4Offers superior protection against dust and water, meeting IEC 60529 standards.
- 5Meets multiple international standards including UL, CSA, and IEC certifications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for non-illuminated push-button |
Device short name | ZB4 | Product compatibility | not compatible with legend holder |
Bezel material | Chromium plated metal | Mounting diameter | 0.9 in (22 mm) |
Sale per indivisible quantity | 100 | Shape of signaling unit head | Round |
Type of operator | spring return | Operator profile | Black projecting, unmarked |
Operator additional information | Clear boot | CAD overall width | 1.2 in (30 mm) |
CAD overall height | 1.2 in (30 mm) | CAD overall depth | 1.4 in (35 mm) |
Mechanical durability | 10000000 cycles | Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class I IEC 60536 |
IP degree of protection | IP66 IEC 60529<br />IP67 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
IK degree of protection | IK06 conforming to IEC 50102 | Standards | EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />UL 508<br />JIS C8201-5-1<br />EN/IEC 60947-5-5<br />EN/IEC 60947-5-4<br />EN/IEC 60947-1<br />JIS C8201-1 |
Product Certifications | CSA<br />DNV<br />UL Listed<br />LROS (Lloyds register of shipping)<br />BV<br />GL | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
