Product Model

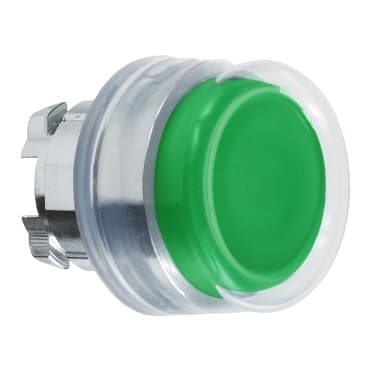

ZB4BP3
Selling Points
- 1Durable Construction: Made with chromium-plated metal bezel for long-lasting performance.
- 2Versatile Enclosure: Meets NEMA 1/2/3/4/4X/12/13 IP66 standards for diverse environmental conditions.
- 3Momentary Action: Features a momentary operator action for precise control.
- 4UL and CSA Certified: Compliant with UL 508 and CSA standards for North American markets.
- 5Authentic Schneider Electric Product: Ensures high-quality and reliability from a trusted brand.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for non-illuminated push-button |
Device short name | ZB4 | Product compatibility | not compatible with legend holder |
Bezel material | Chromium plated metal | Mounting diameter | 0.9 in (22.5 mm) |
Sale per indivisible quantity | 1 | Head type | Standard |
Shape of signaling unit head | Round | Type of operator | spring return |
Operator profile | Green projecting, unmarked | Operator additional information | Clear boot |
cap/operator or lens colour | Green | CAD overall width | 1.2 in (30 mm) |
CAD overall height | 1.2 in (30 mm) | CAD overall depth | 1.4 in (35 mm) |
Mechanical durability | 10000000 cycles | Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting |
Device presentation | Basic element | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Overvoltage category | Class I IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67 |
NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK06 conforming to IEC 50102 |
Standards | IEC 60947-5-5<br />IEC 60947-5-4<br />IEC 60947-1<br />JIS C8201-5-1<br />UL 508<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C8201-1 | Product Certifications | BV<br />CSA<br />DNV<br />LROS (Lloyds register of shipping)<br />UL Listed |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
