schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB4BP67

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

23841

In Stock
Last updated: 2025/4/18
View Specifications

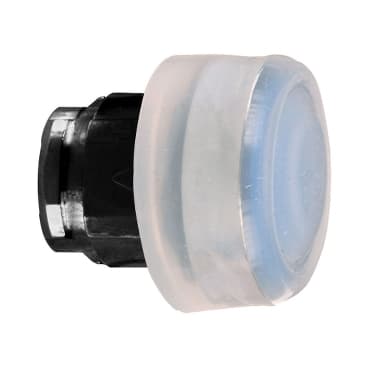

schneider ZB4BP67

Selling Points

  • 1High Impact Resistance: Designed with a black metal bezel for durability and resistance to impacts, dust, water, and vibrations.
  • 2Wide Operating Temperature Range: Operates effectively from -40°C to 70°C, ensuring versatility in different environments.
  • 3Hygienic Design: Features a clear silicone boot that prevents bacterial growth in joints and gaps, making it suitable for food, beverage, healthcare, and pharmaceutical industries.
  • 4Mechanical Durability: Withstands up to 10 million cycles, ensuring long-lasting performance in demanding applications.
  • 5IP69K Rating: Provides excellent protection against dust and water ingress, making it ideal for harsh environments.
Product Details
ZB4BP67
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for non-illuminated push-button
Device short name
ZB4
Product compatibility
not compatible with legend holder
Bezel material
Black metal
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
spring return
Operator profile
Blue projecting, unmarked
Operator additional information
Clear boot
CAD overall width
1.2 in (30 mm)
CAD overall height
1.2 in (30 mm)
CAD overall depth
1.4 in (35 mm)
Mechanical durability
10000000 cycles
Electrical composition code
C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class I IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK06 conforming to IEC 50102
Standards
CSA C22.2 No 14<br />UL 508<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-4<br />JIS C8201-5-1<br />EN/IEC 60947-5-5<br />EN/IEC 60947-1<br />JIS C8201-1
Product Certifications
CSA<br />GL<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
