schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB4BPA1

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

23847

In Stock
Last updated: 2025/4/18
View Specifications

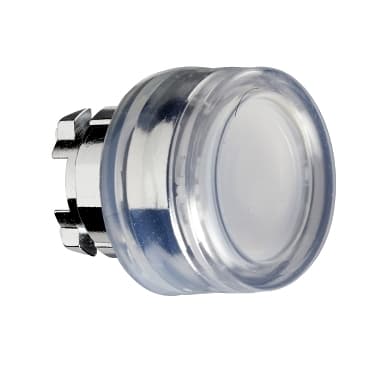

schneider ZB4BPA1

Selling Points

  • 1Spring Return Mechanism: The ZB4BPA1 operates with a reliable spring return mechanism for smooth and consistent operation.
  • 2Chromium-Plated Metal Bezel: Constructed with a chromium-plated metal bezel for durability and resistance to corrosion.
  • 3Robust Mechanical Durability: Designed to withstand 10,000,000 cycles, ensuring long-lasting performance in demanding environments.
  • 4IP66 and IP67 Protection: Offers high protection against solid particles and water ingress, making it suitable for harsh conditions.
  • 5Compliant with International Standards: Meets UL 508, CSA C22.2 No. 14, and other international standards for safety and reliability.
Product Details
ZB4BPA1
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for non-illuminated push-button
Device short name
ZB4
Product compatibility
not compatible with legend holder
Bezel material
Chromium plated metal
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Head type
Standard
Shape of signaling unit head
Round
Type of operator
spring return
Operator profile
White flush, unmarked
Operator additional information
Clear boot
CAD overall width
1.2 in (30 mm)
CAD overall height
1.2 in (30 mm)
CAD overall depth
1.5 in (37 mm)
Mechanical durability
10000000 cycles
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class I IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK06 conforming to IEC 50102
Standards
UL 508<br />EN/IEC 60947-5-5<br />EN/IEC 60947-5-1<br />EN/IEC 60947-1<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />EN/IEC 60947-5-4<br />JIS C8201-1
Product Certifications
GL<br />BV<br />UL Listed<br />DNV<br />LROS (Lloyds register of shipping)<br />CSA
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
