Product Model

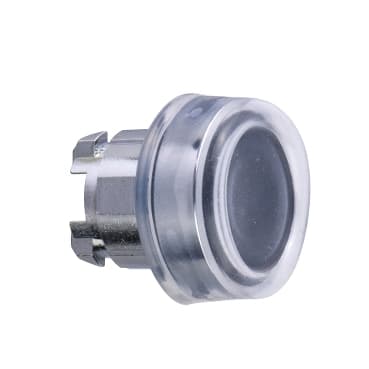

ZB4BPA2
Selling Points
- 1High-quality chromium-plated metal construction for durability and resistance to corrosion.
- 2Flush profile design ensures a sleek and compact installation in standard 22mm cutouts.
- 3Spring return mechanism provides smooth and consistent operation.
- 4IP67 rating ensures water and dust resistance, making it ideal for harsh environments.
- 5UL 508 certification guarantees compliance with safety standards for electrical equipment.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for non-illuminated push-button |
Device short name | ZB4 | Product compatibility | not compatible with legend holder |
Bezel material | Chromium plated metal | Mounting diameter | 0.9 in (22.5 mm) |
Sale per indivisible quantity | 1 | Head type | Standard |
Shape of signaling unit head | Round | Type of operator | spring return |
Operator profile | Black flush, unmarked | Operator additional information | Clear boot |
cap/operator or lens colour | Black | CAD overall width | 1.2 in (30 mm) |
CAD overall height | 1.2 in (30 mm) | CAD overall depth | 1.5 in (37 mm) |
Mechanical durability | 10000000 cycles | Device presentation | Basic element |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class I IEC 60536 |
IP degree of protection | IP66 IEC 60529<br />IP67 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
IK degree of protection | IK06 conforming to IEC 50102 | Standards | IEC 60947-5-1<br />IEC 60947-1<br />IEC 60947-5-4<br />UL 508<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />IEC 60947-5-5<br />JIS C8201-1 |
Product Certifications | BV<br />CSA<br />DNV<br />LROS (Lloyds register of shipping)<br />UL Listed | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
