Product Model

ZB4BR2

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

23854

In Stock
Last updated: 2025/4/18
View Specifications

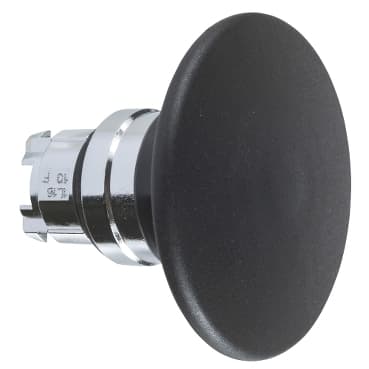

schneider ZB4BR2

Selling Points

  • 1Designed with a chromium-plated metal bezel for maximum durability and resistance to impact, dust, water, and vibrations.
  • 2Features a mushroom-shaped button with a spring return mechanism, making it ideal for use with thick gloves or impaired movements.
  • 3Operates effectively from -40°C to 70°C, ensuring versatility in various environments.
  • 4Protected against dust and water ingress, making it suitable for harsh industrial conditions.
  • 5Fits standard 22mm cutouts and is easily combined with Harmony range of contact blocks for various control functions.
Product Details
ZB4BR2
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for non-illuminated push-button
Device short name
ZB4
Bezel material
Chromium plated metal
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Head type
Standard
Shape of signaling unit head
Round
Type of operator
spring return
Operator profile
Black mushroom Ø 60 mm, unmarked
cap/operator or lens colour
Black
CAD overall width
2.4 in (60 mm)
CAD overall height
2.4 in (60 mm)
CAD overall depth
2.05 in (52 mm)
Mechanical durability
5000000 cycles
Electrical composition code
C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class I IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK03 conforming to IEC 50102
Standards
EN/IEC 60947-5-1<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-4<br />EN/IEC 60947-1<br />EN/IEC 60947-5-5<br />UL 508<br />JIS C8201-1
Product Certifications
BV<br />CSA<br />DNV<br />LROS (Lloyds register of shipping)<br />UL Listed
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
