schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB4BR4

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

23900

In Stock
Last updated: 2025/4/18
View Specifications

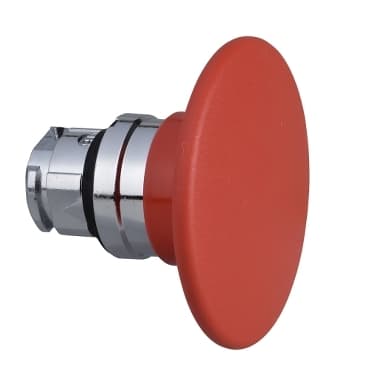

schneider ZB4BR4

Selling Points

  • 1Robust Design: Built with polished chrome metal for durability and resistance to harsh environments.
  • 2Ergonomic Shape: 60mm mushroom shape ensures maximum ergonomics, suitable for operators wearing thick gloves or with impaired movements.
  • 3IP66 Rating: Impact, dust, water, and vibration resistant, ensuring reliable performance in various conditions.
  • 4Spring Return Mechanism: Quick and easy operation with a spring return/impulse mechanism for efficient control functions.
  • 5Compatibility: Designed to fit in a standard 22mm cutout, ensuring seamless integration with existing machinery.
Product Details
ZB4BR4
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for non-illuminated push-button
Device short name
ZB4
Bezel material
Chromium plated metal
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Head type
Standard
Shape of signaling unit head
Round
Type of operator
spring return
Operator profile
Red mushroom Ø 60 mm, unmarked
cap/operator or lens colour
Red
CAD overall width
2.4 in (60 mm)
CAD overall height
2.4 in (60 mm)
CAD overall depth
2.05 in (52 mm)
Mechanical durability
5000000 cycles
Electrical composition code
C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class I IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK03 conforming to IEC 50102
Standards
CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />EN/IEC 60947-1<br />EN/IEC 60947-5-5<br />UL 508<br />JIS C8201-5-1<br />EN/IEC 60947-5-4<br />JIS C8201-1
Product Certifications
BV<br />CSA<br />DNV<br />LROS (Lloyds register of shipping)<br />UL Listed
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
