Product Model

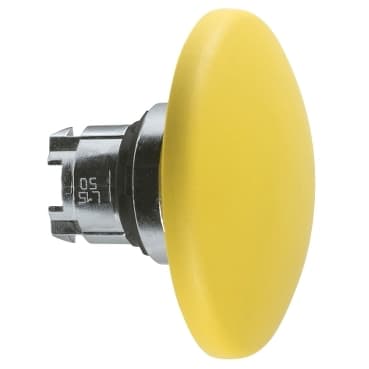

ZB4BR516
Selling Points
- 1UL Listed and CSA Approved: Meets stringent safety standards for electrical applications.
- 2NEMA and IP66 Rating: Ensures high protection against solid objects, dust, and water ingress.
- 3Chromed Zinc Bezel: Durable and corrosion-resistant for long-lasting performance.
- 4Momentary Action: Ideal for applications requiring temporary activation.
- 5Technical Specifications Detailed: Includes dimensions, material, and certification information for precise integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for non-illuminated push-button |
Device short name | ZB4 | Bezel material | Chromium plated metal |
Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
Head type | Standard | Shape of signaling unit head | Hemispherical |
Type of operator | spring return | Operator profile | Yellow mushroom Ø 60 mm, unmarked |
CAD overall width | 2.4 in (60 mm) | CAD overall height | 2.4 in (60 mm) |
CAD overall depth | 1.8 in (45 mm) | Mechanical durability | 5000000 cycles |
Electrical composition code | C11 3 single front mounting<br />C15 1 single front mounting<br />C3 6 single front mounting<br />C4 6 single and double front mounting | Device presentation | Basic element |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class I IEC 60536 |
IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K | NEMA degree of protection | NEMA 13<br />NEMA 4X |
IK degree of protection | IK03 conforming to IEC 50102 | Standards | CSA C22.2 No 14<br />EN/IEC 60947-5-5<br />EN/IEC 60947-5-4<br />JIS C8201-5-1<br />UL 508<br />EN/IEC 60947-5-1<br />EN/IEC 60947-1<br />JIS C8201-1 |
Product Certifications | UL Listed<br />LROS (Lloyds register of shipping)<br />DNV<br />GL<br />CSA<br />BV | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
