schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB4BR616

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

23907

In Stock
Last updated: 2025/4/18
View Specifications

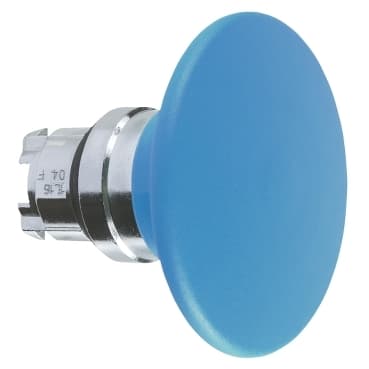

schneider ZB4BR616

Selling Points

  • 1Robust Performance: Designed to withstand harsh environments with high impact resistance up to IK06.
  • 2Illuminated Mushroom Head: Provides clear visibility with illuminated mushroom head pushbuttons.
  • 3Wide Compatibility: Suitable for various applications with a diameter of Ø22 mm.
  • 4Durable Construction: Constructed from chromium-plated metal for long-lasting durability.
  • 5Comprehensive Range: Part of a comprehensive range of control and signaling units from Schneider Electric.
Product Details
ZB4BR616
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for non-illuminated push-button
Device short name
ZB4
Bezel material
Chromium plated metal
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Head type
Standard
Shape of signaling unit head
Hemispherical
Type of operator
spring return
Operator profile
Blue mushroom Ø 60 mm, unmarked
CAD overall width
2.4 in (60 mm)
CAD overall height
2.4 in (60 mm)
CAD overall depth
1.8 in (45 mm)
Mechanical durability
5000000 cycles
Electrical composition code
C11 3 single front mounting<br />C15 1 single front mounting<br />C3 6 single front mounting<br />C4 6 single and double front mounting
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class I IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK03 conforming to IEC 50102
Standards
EN/IEC 60947-1<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />EN/IEC 60947-5-5<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-4<br />UL 508<br />JIS C8201-1
Product Certifications
LROS (Lloyds register of shipping)<br />GL<br />BV<br />DNV<br />CSA<br />UL Listed
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
