schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB4BS127

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

23912

In Stock
Last updated: 2025/4/18
View Specifications

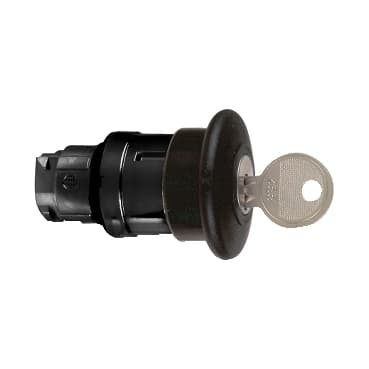

schneider ZB4BS127

Selling Points

  • 1High-quality construction: Made from chromium-plated metal for durability and resistance.
  • 2Non-illuminated design: Ideal for applications where illumination is not required.
  • 3Modular head compatibility: Designed to fit seamlessly into various modular head systems.
  • 4IP 69 rating: Ensures protection against dust and water ingress.
  • 5UL 508 certification: Meets stringent safety standards for electrical equipment.
Product Details
ZB4BS127
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for non-illuminated push-button
Device short name
ZB4
Bezel material
Black metal
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Head type
Standard
Shape of signaling unit head
Round
Type of operator
latching
Reset
Key release
Operator profile
Black mushroom Ø 40 mm, unmarked
Type of Keylock
Key 455
Key withdrawal position
Center
CAD overall width
1.6 in (40 mm)
CAD overall height
1.6 in (40 mm)
CAD overall depth
3.1 in (79 mm)
Net Weight
0.15 lb(US) (0.07 kg)
Mechanical durability
300000 cycles
Electrical composition code
C11 3 single front mounting<br />C15 1 single front mounting<br />C7 4 single front mounting<br />C8 4 single and double front mounting<br />C10 4 single and double front mounting
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class I IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK03 conforming to IEC 50102
Standards
EN/IEC 60947-5-4<br />UL 508<br />EN/IEC 60947-5-5<br />JIS C8201-5-1<br />EN/IEC 60947-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />JIS C8201-1
Product Certifications
BV<br />GL<br />DNV<br />UL Listed<br />LROS (Lloyds register of shipping)<br />CSA
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
