Product Model

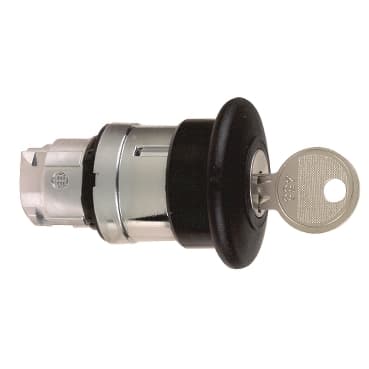

ZB4BS12C
Selling Points
- 1Built with chromed zinc bezel material for long-lasting performance.
- 2UL Listed and CSA Approved for enhanced safety in industrial settings.
- 3Suitable for various applications with an IP66 rating for dust and water resistance.
- 4Non-illuminated push-pull action ensures quick and reliable operation.
- 522mm diameter fits seamlessly into tight spaces, perfect for panel mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for non-illuminated push-button |
Device short name | ZB4 | Product compatibility | 5 multi-chip |
Bezel material | Chromium plated metal | Mounting diameter | 0.9 in (22 mm) |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
Type of operator | latching | Reset | Key release |
Operator profile | Black mushroom Ø 40 mm, unmarked | Type of Keylock | Special key |
Key withdrawal position | Center | Mechanical durability | 300000 cycles |
Electrical composition code | C11 3 single front mounting<br />C15 1 single front mounting<br />C7 4 single front mounting<br />C8 4 single and double front mounting<br />C10 4 single and double front mounting | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Overvoltage category | Class I IEC 60536 | IP degree of protection | IP66 IEC 60529 |
NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK03 conforming to IEC 50102 |
Standards | EN/IEC 60947-5-4<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />UL 508<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />EN/IEC 60947-5-5<br />JIS C8201-1 | Product Certifications | DNV<br />CSA<br />LROS (Lloyds register of shipping)<br />BV<br />UL Listed<br />GL |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
