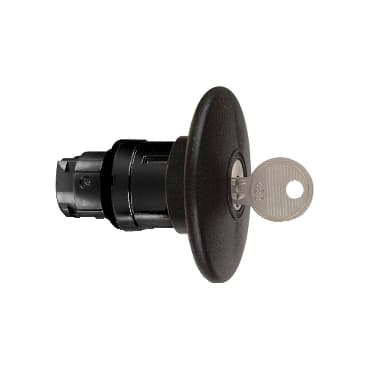

Product Model
ZB4BS227
Selling Points
- 1The ZB4BS227 is built with a robust design to withstand harsh environments.
- 2Ensures high protection against dust and water, making it suitable for outdoor use.
- 3Compatible with a wide range of industrial panels and enclosures.
- 4Provides a clear visual indication with its prominent black button.
- 5Functioning from -25°C to 70°C, suitable for various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for non-illuminated push-button |
Device short name | ZB4 | Bezel material | Black metal |
Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
Head type | Standard | Shape of signaling unit head | Round |
Type of operator | latching | Reset | Key release |
Operator profile | Black mushroom Ø 60 mm, unmarked | Type of Keylock | Key 455 |
Key withdrawal position | Center | CAD overall width | 2.4 in (60 mm) |
CAD overall height | 2.4 in (60 mm) | CAD overall depth | 3.1 in (79 mm) |
Net Weight | 0.20 lb(US) (0.09 kg) | Mechanical durability | 300000 cycles |
Electrical composition code | C11 3 single front mounting<br />C15 1 single front mounting<br />C7 4 single front mounting<br />C8 4 single and double front mounting<br />C10 4 single and double front mounting | Device presentation | Basic element |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class I IEC 60536 |
IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K | NEMA degree of protection | NEMA 13<br />NEMA 4X |
IK degree of protection | IK03 conforming to IEC 50102 | Standards | EN/IEC 60947-1<br />UL 508<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-5<br />EN/IEC 60947-5-4<br />JIS C8201-5-1<br />JIS C8201-1 |
Product Certifications | CSA<br />LROS (Lloyds register of shipping)<br />DNV<br />GL<br />BV<br />UL Listed | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
