Product Model

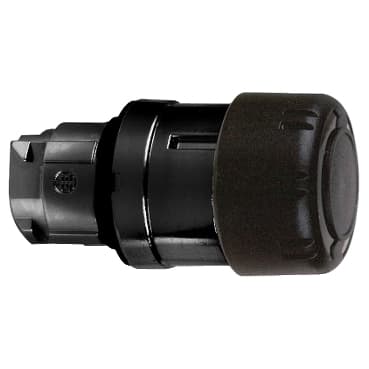

ZB4BS427
Selling Points
- 1High-quality control solution for various applications.
- 2Mushroom latching mechanism for secure operation.
- 3Chromium-plated metal for durability and resistance.
- 4IP66 rating for excellent protection against dust and water.
- 5Easy installation with Ø22mm mounting hole diameter.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for non-illuminated push-button |
Device short name | ZB4 | Bezel material | Black metal |
Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
Head type | Standard | Shape of signaling unit head | Round |
Type of operator | latching | Reset | Turn to release |
Operator profile | Black mushroom Ø 30 mm, unmarked | CAD overall width | 1.2 in (30 mm) |
CAD overall height | 1.2 in (30 mm) | CAD overall depth | 2.2 in (57 mm) |
Net Weight | 0.146 lb(US) (0.066 kg) | Mechanical durability | 300000 cycles |
Electrical composition code | C11 3 single front mounting | Device presentation | Basic element |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class I IEC 60536 |
IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K | NEMA degree of protection | NEMA 13 |
IK degree of protection | IK06 conforming to IEC 50102 | Standards | CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-4<br />JIS C8201-5-1<br />EN/IEC 60947-1<br />EN/IEC 60947-5-5<br />UL 508<br />JIS C8201-1 |
Product Certifications | DNV<br />GL<br />LROS (Lloyds register of shipping)<br />UL Listed<br />CSA<br />BV | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
