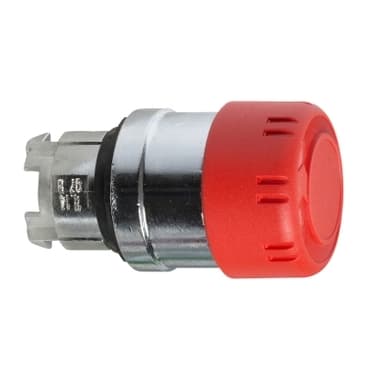

schneider ZB4BS44

Selling Points

  • 1High-Performance Emergency Stop Solution: Designed for critical applications, the ZB4BS44 ensures quick and reliable emergency stop functionality.
  • 2IP69K and IK06 Ratings: Built to withstand harsh environments, this switch is rated IP69K and IK06 for maximum durability.
  • 322mm Latching Turn Release: Features a 22mm latching turn release mechanism for secure operation.
  • 4Red Ø30 Emergency Switching Off Pushbutton Head: Easy-to-use red Ø30 emergency switching off pushbutton head for clear visibility.
  • 5Compliant with CSA, IEC, and UL Standards: Meets stringent standards including CSA 22.2 No. 14, IEC 50102, IEC 60364, IEC 60529, IEC 60947, and UL 508 for global compatibility.
Product Details
ZB4BS44
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for emergency switching off push-button
Device short name
ZB4
Bezel material
Chromium plated metal
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
mechanical latching
Reset
Turn to release
Operator profile
Red mushroom Ø 30 mm, unmarked
Head type
Standard
CAD overall width
1.2 in (30 mm)
CAD overall height
1.2 in (30 mm)
CAD overall depth
2.2 in (57 mm)
Net Weight
0.146 lb(US) (0.066 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability
300000 cycles
Electrical composition code
C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />C10 4 single and double front mounting
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Electrical shock protection class
Class I IEC 61140
IP degree of protection
IP66 IEC 60529<br />IP67<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X<br />NEMA 4<br />NEMA 12
IK degree of protection
IK06 conforming to IEC 50102
Standards
EN/IEC 60947-5-1<br />EN/IEC 60947-1<br />EN/IEC 60947-5-4<br />IEC 60364-5-53<br />UL 508<br />GB 14048.5<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />JIS C8201-1
Product Certifications
BV<br />UL Listed<br />LROS (Lloyds register of shipping)<br />DNV<br />CSA<br />GL
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
