Product Model

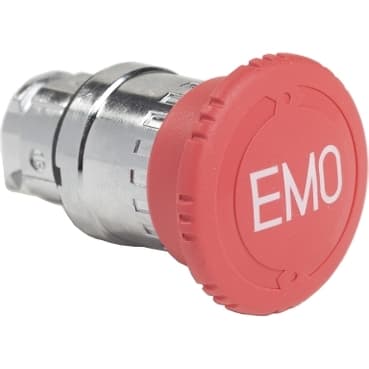

ZB4BS84430
Selling Points
- 1Mechanical Latching Turn to Release: Ensures secure and reliable emergency stop functionality.
- 2IP66 and IP69K Ratings: Provides robust protection against dust and water, ensuring durability in harsh environments.
- 3Chromium Plated Metal Bezel: Offers a premium finish with high durability and resistance to corrosion.
- 4Suitable for Harmony XB4 Series: Designed to fit seamlessly with Schneider Electric's Harmony XB4 range of control and signaling units.
- 5High Cycle Durability (300,000 Cycles): Built to withstand extensive use in demanding industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for emergency switching off push-button |
Device short name | ZB4 | Bezel material | Chromium plated metal |
Mounting diameter | 0.9 in (22.5 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Type of operator | trigger action and mechanical latching |
Reset | Turn to release | Operator profile | Red mushroom Ø 40 mm, EMO |
Head type | Standard | CAD overall width | 1.6 in (40 mm) |
CAD overall height | 1.6 in (40 mm) | CAD overall depth | 2.2 in (57 mm) |
Net Weight | 0.161 lb(US) (0.073 kg) | Mechanical durability | 300000 cycles |
Electrical composition code | C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />C10 4 single and double front mounting | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Electrical shock protection class | Class I IEC 61140 | IP degree of protection | IP66 IEC 60529<br />IP69<br />IP69K |
NEMA degree of protection | NEMA 13<br />NEMA 4X<br />NEMA 4<br />NEMA 12 | IK degree of protection | IK06 conforming to IEC 50102 |
Standards | JIS C8201-5-1<br />CSA C22.2 No 14<br />IEC 60947-5-1<br />GB 14048.5<br />UL 508<br />IEC 60947-1<br />IEC 60364-5-53<br />IEC 60947-5-4<br />IEC 60204-1<br />IEC 60947-5-5<br />ISO 13850<br />JIS C8201-1 | Product Certifications | DNV<br />UL Listed<br />LROS (Lloyds register of shipping)<br />BV<br />CSA |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
