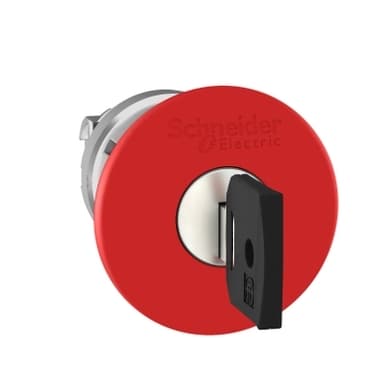

Product Model
ZB4BS94414
Selling Points
- 1Highly Durable: IP66 rating ensures resistance to dust, water, and vibrations.
- 2Ergonomic Design: Prominent 40mm mushroom red button for easy visibility and operation.
- 3Secure Operation: Latched key release mechanism for secure machine shutdown.
- 4Wide Temperature Range: Operates from -25°C to 70°C, suitable for various environments.
- 5Easy Installation: Fits standard 22mm cutouts, ensuring compatibility with existing machinery.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for emergency switching off push-button |
Device short name | ZB4 | Bezel material | Chromium plated metal |
Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Type of operator | trigger action and mechanical latching |
Reset | Key release | Operator profile | Red mushroom Ø 40 mm, unmarked |
Type of Keylock | Key 520E | Key withdrawal position | Center |
Head type | Standard | CAD overall width | 1.6 in (40 mm) |
CAD overall height | 1.6 in (40 mm) | CAD overall depth | 3.1 in (79 mm) |
Net Weight | 0.216 lb(US) (0.098 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
Mechanical durability | 300000 cycles | Electrical composition code | C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />C10 4 single and double front mounting |
Device presentation | Basic element | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Electrical shock protection class | Class I IEC 61140 | IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K |
NEMA degree of protection | NEMA 13<br />NEMA 4X<br />NEMA 4<br />NEMA 12 | IK degree of protection | IK03 conforming to IEC 50102 |
Standards | IEC 60364-5-53<br />IEC 60947-5-4<br />IEC 60947-5-5<br />IEC 60204-1<br />GB 14048.5<br />JIS C8201-5-1<br />IEC 60947-5-1<br />UL 508<br />IEC 60947-1<br />ISO 13850<br />CSA C22.2 No 14<br />JIS C8201-1 | Product Certifications | DNV<br />GL<br />UL Listed<br />CSA<br />LROS (Lloyds register of shipping)<br />BV |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
