schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB4BT27

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

23959

In Stock
Last updated: 2025/4/18
View Specifications

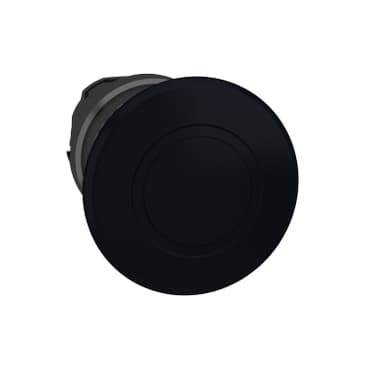

schneider ZB4BT27

Selling Points

  • 1Built to withstand harsh environments with high pressure washer resistance up to 1015.26 psi.
  • 22-position stay-put mechanism for precise control and easy operation.
  • 3Made from high-quality black metal for long-lasting performance.
  • 4Compatible with various connection types including screw clamp, connector, and spring terminal.
  • 5Compliant with Schneider Electric's "Use Better, Use Longer, Use Again" campaign for reduced carbon footprint.
Product Details
ZB4BT27
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for non-illuminated push-button
Device short name
ZB4
Bezel material
Black metal
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Head type
Standard
Shape of signaling unit head
Round
Type of operator
latching
Reset
Push-pull
Operator profile
Black mushroom Ø 40 mm, unmarked
CAD overall width
1.6 in (40 mm)
CAD overall height
1.6 in (40 mm)
CAD overall depth
2.2 in (56 mm)
Net Weight
0.170 lb(US) (0.077 kg)
Mechanical durability
300000 cycles
Electrical composition code
C11 3 single front mounting<br />C15 1 single front mounting<br />C7 4 single front mounting<br />C8 4 single and double front mounting<br />C10 4 single and double front mounting
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class I IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK06 conforming to IEC 50102
Standards
EN/IEC 60947-5-4<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-5<br />CSA C22.2 No 14<br />UL 508<br />JIS C8201-1
Product Certifications
CSA<br />GL<br />DNV<br />BV<br />UL Listed<br />LROS (Lloyds register of shipping)
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
