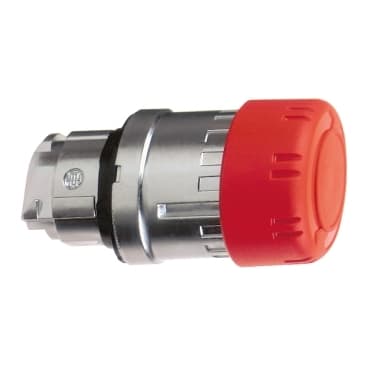

schneider ZB4BT44

Selling Points

  • 1Red Mushroom Actuator: Features a 40mm diameter red mushroom actuator for clear visibility.
  • 2Chromium Plated Metal Bezel: Durable and corrosion-resistant chromium plated metal bezel.
  • 3NEMA 1/2/3/4/4X/12/13 IP65 Enclosure: Meets stringent IP65 and NEMA ratings for harsh environments.
  • 4UL Listed and CSA Certified: Compliant with North American safety standards.
  • 5Maintained Operator Action: Provides consistent operation with a maintained action mechanism.
Product Details
ZB4BT44
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for emergency switching off push-button
Device short name
ZB4
Bezel material
Chromium plated metal
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
mechanical latching
Reset
Push-pull
Operator profile
Red mushroom Ø 30 mm, unmarked
Head type
Standard
CAD overall width
1.6 in (40 mm)
CAD overall height
1.6 in (40 mm)
CAD overall depth
2.2 in (56 mm)
Net Weight
0.170 lb(US) (0.077 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability
300000 cycles
Electrical composition code
C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />C10 4 single and double front mounting
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Electrical shock protection class
Class I IEC 61140
IP degree of protection
IP66 IEC 60529<br />IP67<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X<br />NEMA 4<br />NEMA 12
IK degree of protection
IK06 conforming to IEC 50102
Standards
UL 508<br />IEC 60364-5-53<br />CSA C22.2 No 14<br />EN/IEC 60947-5-4<br />JIS C8201-5-1<br />EN/IEC 60947-1<br />GB 14048.5<br />EN/IEC 60947-5-1<br />JIS C8201-1
Product Certifications
GL<br />LROS (Lloyds register of shipping)<br />CSA<br />UL Listed<br />BV<br />DNV
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
