Product Model

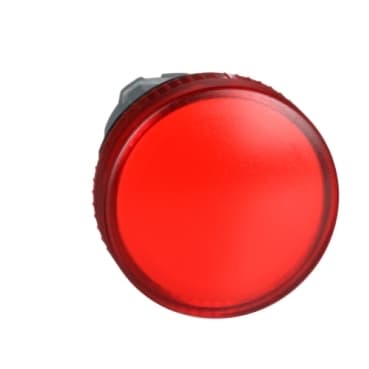

ZB4BV04
Selling Points
- 1Compact 22mm red color lens for clear visibility.
- 2Durable metal bezel with NEMA 1/2/3/4/4X/12/13 IP65 enclosure.
- 3UL Listed and CSA certified for safety and reliability.
- 4Compatible with BA 9s devices for versatile use.
- 5Chromium plated metal construction for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for pilot light |
Product Compatibility | BA 9s | Device short name | ZB4 |
Bezel material | Chromium plated metal | Mounting diameter | 0.9 in (22 mm) |
Sale per indivisible quantity | 1 | Head type | Standard |
Shape of signaling unit head | Round | cap/operator or lens colour | Red |
Operator additional information | With plain lens | CAD overall width | 1.1 in (29 mm) |
CAD overall height | 1.1 in (29 mm) | CAD overall depth | 1.2 in (31 mm) |
Net Weight | 0.060 lb(US) (0.027 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
Electrical composition code | P3 front mounting BA 9s<br />P4 front mounting BA 9s and transformer | Device presentation | Basic element |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…131 °F (-40…55 °C) | Overvoltage category | Class I IEC 60536 |
IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K | NEMA degree of protection | NEMA 13<br />NEMA 4X |
IK degree of protection | IK06 conforming to IEC 50102 | Standards | JIS C8201-5-1<br />IEC 60947-5-1<br />IEC 60947-1<br />UL 508<br />IEC 60947-5-5<br />IEC 60947-5-4<br />JIS C8201-1 |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
