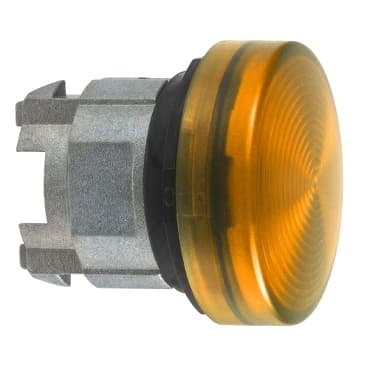

Product Model
ZB4BV05S
Selling Points
- 1Chromium-Plated Metal Bezel: Durable and resistant to corrosion.
- 2High Ambient Lighting Resistance: Suitable for environments with high lighting conditions.
- 3Robust IP Ratings: IP66, IP67, and IP69K for enhanced protection against dust and water.
- 4Compact Design: 22mm mounting diameter with a round shape.
- 5UL Listed and CSA Certified: Meets North American safety standards for industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for pilot light |
Product Compatibility | BA 9s | Device short name | ZB4 |
Bezel material | Chromium plated metal | Mounting diameter | 0.9 in (22 mm) |
Sale per indivisible quantity | 1 | Head type | Standard |
Shape of signaling unit head | Round | cap/operator or lens colour | Orange |
Operator additional information | With grooved lens | Environmental characteristic | High ambient lighting environment |
CAD overall width | 1.1 in (29 mm) | CAD overall height | 1.1 in (29 mm) |
CAD overall depth | 1.2 in (30 mm) | Net Weight | 0.060 lb(US) (0.027 kg) |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Electrical composition code | P3 front mounting BA 9s<br />P4 front mounting BA 9s and transformer |
Device presentation | Basic element | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…131 °F (-40…55 °C) |
Overvoltage category | Class I IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K |
NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK06 conforming to IEC 50102 |
Standards | UL 508<br />IEC 60947-5-4<br />IEC 60947-1<br />IEC 60947-5-1<br />IEC 60947-5-5<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />JIS C8201-1 | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
