Product Model

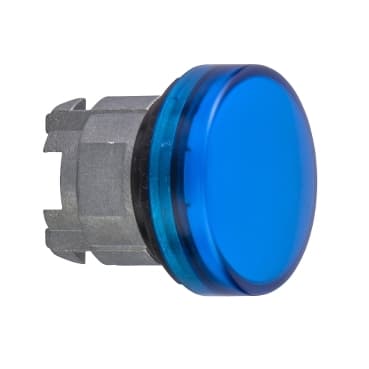

ZB4BV06TQ
Selling Points
- 1High-Quality Illumination: The ZB4BV06TQ features a universal LED illumination for clear visibility.
- 2Robust Construction: Made from chromium-plated metal, ensuring durability and resistance to harsh conditions.
- 3Wide Operating Range: Operates between -40°C to +70°C, suitable for various environmental settings.
- 4Easy Installation: Screw clamp terminal connections simplify the installation process.
- 5Comprehensive Protection: Meets NEMA ratings 1/2/3/4/4X and IP66 standards for water and dust resistance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for pilot light |
Product Compatibility | BA 9s | Device short name | ZB4 |
Bezel material | Chromium plated metal | Mounting diameter | 0.9 in (22 mm) |
Sale per indivisible quantity | 100 | Shape of signaling unit head | Round |
cap/operator or lens colour | Blue | Operator additional information | With plain lens |
CAD overall width | 1.1 in (29 mm) | CAD overall height | 1.1 in (29 mm) |
CAD overall depth | 1.2 in (31 mm) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
Electrical composition code | P3 front mounting BA 9s<br />P4 front mounting BA 9s and transformer | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Overvoltage category | Class I IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K |
NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK06 conforming to IEC 50102 |
Standards | EN/IEC 60947-1<br />EN/IEC 60947-5-5<br />CSA C22.2 No 14<br />UL 508<br />JIS C8201-5-1<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-4<br />JIS C8201-1 | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
