schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB4BV07TQ

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

24011

In Stock
Last updated: 2025/4/18
View Specifications

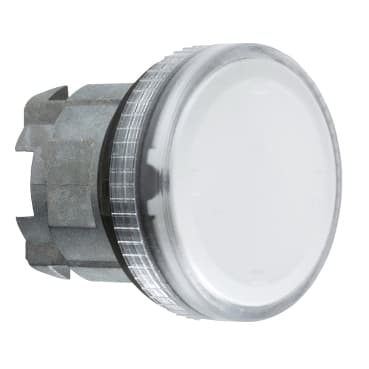

schneider ZB4BV07TQ

Selling Points

  • 1Withstands up to 1015.26 psi (7000000 Pa) at 55 °C.
  • 2Dust and water-resistant, ensuring reliable operation in demanding conditions.
  • 3Quick and easy assembly and disassembly with various connection options (screw clamp, connector, Faston connector, or spring terminal).
  • 4Designed to withstand shocks and vibrations, making it ideal for harsh environments.
  • 5Made with recycled cardboard packaging and part of Schneider Electric's "Use Better, Use Longer, Use Again" campaign for extended product lifetimes and recyclability.
Product Details
ZB4BV07TQ
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for pilot light
Product Compatibility
BA 9s
Device short name
ZB4
Bezel material
Chromium plated metal
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
100
Shape of signaling unit head
Round
cap/operator or lens colour
Clear
Operator additional information
With plain lens
CAD overall width
1.1 in (29 mm)
CAD overall height
1.1 in (29 mm)
CAD overall depth
1.2 in (30 mm)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Electrical composition code
P3 front mounting BA 9s<br />P4 front mounting BA 9s and transformer
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class I IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK06 conforming to IEC 50102
Standards
UL 508<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-5<br />EN/IEC 60947-5-4<br />JIS C8201-1
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
