Product Model

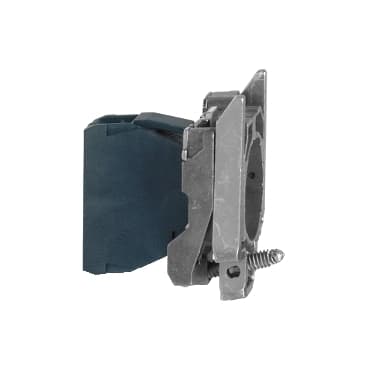

ZB4BV181
Selling Points
- 1The ZB4BV181 light block is designed for compact installations, ensuring efficient use of space.
- 2Equipped with screw clamp terminals, supporting cables up to 2 x 1.5 mm² with cable end.
- 3Made from Zamak, providing robustness and longevity in harsh environments.
- 4Features a body fixing collar for secure mounting, simplifying the installation process.
- 5Specifically designed to work with BA9s bulbs, ensuring seamless integration in various lighting systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Complete body/light block assembly |
Device short name | ZB4 | Fixing collar material | Zamak |
Sale per indivisible quantity | 1 | Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end<br />Screw clamp terminals, >= 1 x 0.22 mm² without cable end |
Light source | Bulb not included | Bulb base | BA 9s |
[Us] rated supply voltage | 24 V AC/DC 50/60 Hz | Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) EN 60947-1 |
Shape of screw head | Cross Philips no 1<br />Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm | [Ui] rated insulation voltage | 600 V 3)EN 60947-1 |
[Uimp] rated impulse withstand voltage | 6 kV EN 60947-1 | Signalling type | Flashing |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Electrical shock protection class | Class I IEC 60536 |
Standards | JIS C8201-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-5<br />UL 508<br />EN/IEC 60947-1<br />EN/IEC 60947-5-4<br />JIS C8201-1 | Product Certifications | UL Listed<br />GL<br />LROS (Lloyds register of shipping)<br />BV<br />CSA<br />DNV |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
