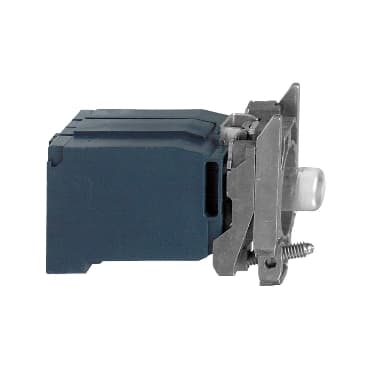

Product Model
ZB4BV33
Selling Points
- 1Meets EN/IEC 60947-1 and UL 508 for safety and reliability.
- 2Constructed with Zamak fixing collar and Faston connectors for durability.
- 3Front mounting and integral transformer for simple setup.
- 4REACh free of SVHC, EU RoHS compliant, and mercury-free.
- 5Operates within -40°F to 131°F (-40°C to 55°C) ambient temperature range.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Complete body/light block assembly |
Device short name | ZB4 | Fixing collar material | Zamak |
Sale per indivisible quantity | 1 | Connections - terminals | Faston connector 1 x 6.35 mm<br />Faston connector 2 x 2.8 mm |
Light source | Incandescent | Bulb base | BA 9s |
Light block supply | Via integral transformer 1.2 VA 6 V | [Us] rated supply voltage | 110...120 V AC 50/60 Hz |
CAD overall width | 1.2 in (30 mm) | CAD overall height | 1.9 in (47 mm) |
CAD overall depth | 2.4 in (60 mm) | Terminals description ISO n°1 | (X1-X2)PL |
[Ui] rated insulation voltage | 250 V 3)EN 60947-1 | [Uimp] rated impulse withstand voltage | 4 kV EN 60947-1 |
Signalling type | Steady | Mounting of block | Front mounting |
Electrical composition code | P4<br />M9 | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…131 °F (-40…55 °C) |
Electrical shock protection class | Class I IEC 60536 | IP degree of protection | IP20 |
Standards | EN/IEC 60947-1<br />JIS C8201-5-1<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-4<br />EN/IEC 60947-5-5<br />UL 508<br />CSA C22.2 No 14<br />JIS C8201-1 | Product Certifications | UL Listed<br />CSA |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
