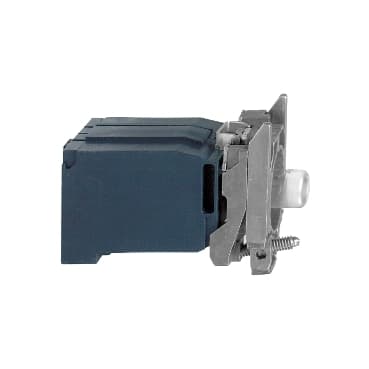

Product Model
ZB4BV4
Selling Points
- 1Compact Design: 1.18 in W x 2.36 in D x 1.85 in H dimensions ensure easy installation in various control units.
- 2Reliable Illumination: BA9S incandescent lamps provide consistent and clear lighting for signaling units.
- 3Easy Installation: Screw-clamp terminals simplify the assembly process, allowing for quick configuration.
- 4Durable Construction: Metal body with a zamak finish ensures durability and resistance to environmental factors.
- 5Wide Operating Range: Compatible with operating temperatures from -40°C to 55°C, making it versatile for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Complete body/light block assembly |
Device short name | ZB4 | Fixing collar material | Zamak |
Sale per indivisible quantity | 1 | Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end<br />Screw clamp terminals, >= 1 x 0.22 mm² without cable end |
Light source | Incandescent | Bulb base | BA 9s |
Light block supply | Via integral transformer 1.2 VA 6 V | [Us] rated supply voltage | 230...240 V AC 50/60 Hz |
CAD overall width | 1.2 in (30 mm) | CAD overall height | 1.9 in (47 mm) |
CAD overall depth | 2.4 in (60 mm) | Terminals description ISO n°1 | (X1-X2)PL |
Net Weight | 0.29 lb(US) (0.13 kg) | Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
Shape of screw head | Cross Philips no 1<br />Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm | [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
[Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 | Signalling type | Steady |
Mounting of block | Front mounting | Electrical composition code | P4<br />M9 |
Device presentation | Basic sub-assemblies | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…131 °F (-40…55 °C) |
Electrical shock protection class | Class I IEC 60536 | IP degree of protection | IP20 |
Standards | IEC 60947-1<br />UL 508<br />IEC 60947-5-5<br />JIS C8201-5-1<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />IEC 60947-5-4<br />JIS C8201-1 | Product Certifications | DNV<br />UL Listed<br />LROS (Lloyds register of shipping)<br />BV<br />CSA |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
