Product Model

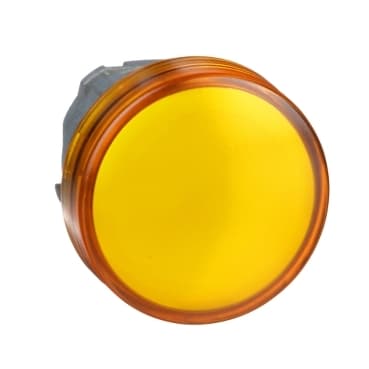

ZB4BV53
Selling Points
- 1Built with Zamak fixing collar for long-lasting performance.
- 2Faston terminals for quick and secure connections.
- 3Compliant with EU RoHS and China RoHS regulations, promoting sustainability.
- 4Compatible with BA9s incandescent bulbs for reliable lighting.
- 5Replaced by similar products in the Schneider Electric range for continued support.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Complete body/light block assembly |
Device short name | ZB4 | Fixing collar material | Zamak |
Sale per indivisible quantity | 1 | Connections - terminals | Faston connector 1 x 6.35 mm |
Light source | Incandescent | Bulb base | BA 9s |
Light block supply | Via integral transformer 1.2 VA 6 V | [Us] rated supply voltage | 400 V AC 50/60 Hz |
CAD overall width | 1.2 in (30 mm) | CAD overall height | 1.9 in (47 mm) |
CAD overall depth | 2.4 in (60 mm) | Terminals description ISO n°1 | (X1-X2)PL |
[Ui] rated insulation voltage | 250 V 3)EN 60947-1 | [Uimp] rated impulse withstand voltage | 4 kV EN 60947-1 |
Signalling type | Steady | Mounting of block | Front mounting |
Electrical composition code | P4 | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…131 °F (-40…55 °C) |
Electrical shock protection class | Class I IEC 60536 | IP degree of protection | IP20 |
Standards | EN/IEC 60947-1<br />EN/IEC 60947-5-4<br />JIS C8201-5-1<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-5<br />UL 508<br />JIS C8201-1 | Product Certifications | UL Listed<br />CSA |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
